KNAL T31 - Grips for Snip with Laser meter
KNAL T31 is a pair of Grips that you replace with your snip grips. The grips include Laser distance meter that enables you to save significant time on your work by faster and easier measurements of your aluminum/tin profiles using laser measurement.

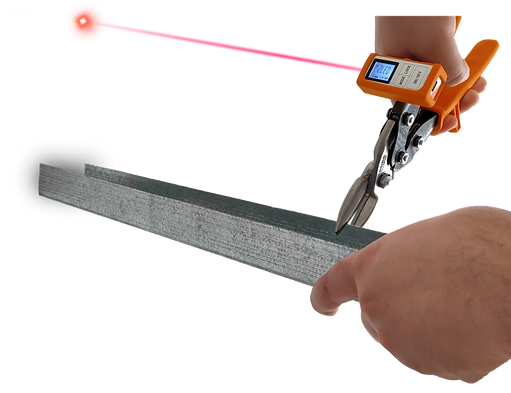

Place profile edge against the wall and measure the required distance between the wall and the profile cutting point.
No need for help or delays during your profile measurements – just snip away!
Grips for Snip
with Laser meter
Replace your Snip Grips
with KNAL T31
and get snipping!
Save significant
working time.
laser
Distance
Meter
Place for Bit
(Bit not include)
Can be used to mark measurement points with various bits or pencil.
Type-C USB chargeable (Cable include)
Measurement range:
0.03m – 30m
Measurement accuracy: 2mm
Lowest indication units: 1mm
Specifications
Technical Parameters
KNAL T31
Measuring Accuracy:
Unit:
Measurement Range:
Measuring Time:
Laser Type:
laser beam auto off time:
Instrument auto off time:
Display lighting:
Datum mark switch:
Battery status&Battery type:
Net Weight (Without the plastic Grips):
Operating temperature range:
Storage temperature range:
±3mm*
m/in/ft
0.03-30m
0.3-4s
Class, 620~690nm, <1 mW
60s/120s/300s
300s
White LED
v
200 mAh rechargeable Lithium battery
22g
0〜40℃
-20〜60 ℃
* Under good measuring condition (good measuring surface, indoor temperature), the device can reach to 30 meters, under the bad measuring condition (such as the environmental light is too strong, the diffuse reflectance of measured points is too large or too small, and excessive temperature differentials etc.), the measurement error can reach to ±25mm/m.
** Please use the white reflect board when there is strong sunlight or poor reflection of the target!
About
KNAL Technologies is a company that have patent depended products.
KNAL Technologies have co-operate with one of the leading companies for Laser Distance meter to create dedicated unique Laser meter that is specialize for use on the company Snips Grips.
